Application

FA watermelon mill is used to keep casing window in gauge ensuring that subsequent assemblies can pass through smoothly.

It can be used:

  • Separately with circulation through ports in a box (pin);
  • In conjunction with second watermelon mill and window mill with circulation through ports in window mill;
  • In conjunction with drilling bit and circulation through ports in the bit;
  • In conjunction with window-starting mill for window milling and elongation, all in a single trip.

It can be manufactured with pin or box thread connection.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru

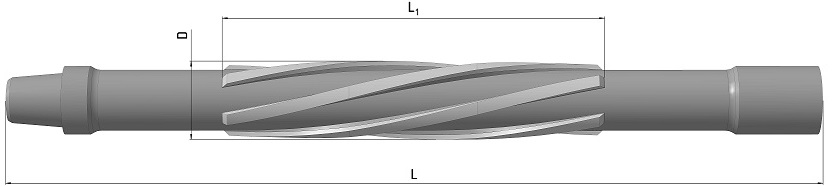

Images and Dimensions
Technical data
To cart Code Casing OD,
in
Total length,
ft
L1, ft D, in Thread, API Weight, lb
FA-92 4-1/2 3.74 1.97 3.62 NC-23 85.9
FA-112 5-1/2 4.2 1.97 4.41 2-7/8 Reg (NC-26) 165.3
FA-116 5-1/2 4.2 1.97 4.57 2-7/8 Reg (NC26) 166.5
FA-118 5-1/2 4.2 1.97 4.65 2-7/8 Reg (NC26) 167.5
FA-120 5-1/2 4.2 1.97 4.72 2-7/8 Reg (NC26) 173.0
FA-124 5-3/4 4.2 1.97 4.88 2-7/8 Reg (NC26) 175.0
FA-142 6-5/8 4.2 1.97 5.59 3-1/2Reg(NC31) 198.4
FA-151 7,0 4.2 1.97 5.94 3-1/2Reg(NC31) 202.8
FA-216 9-5/8 4.92 2.62 8.5 4-1/2IF (NC-50) 447.5
