NV Rotary Jetting Nozzle

Full specifications

NV rotary jetting nozzle is designed to be used for both jetting and circulating operations when cleaning and washing the inside of the tubing. It can also be used to assist in the manipulation of the coiled tubing string both in and out of the well.

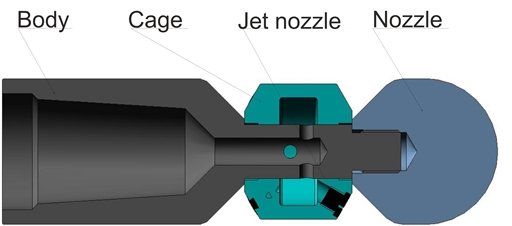

The rotary jetting nozzle works on the principal of the applied fluid pressure, causing the 15° nozzle to rotate and jet the fluid forward and backward against the tubing wall in a full 360° rotating action.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru.

Images and Dimensions

Technical data

To cart	Code	OD, in	Casing ID, in	Total length, ft	Operating pressure, psi	Max environment temperatue, F	Top connection, compatible with API	Weight, lb
	NV-54	2.13	2.87/3.5	7.28	1015	No limitations	1.5'' AMMT	4.96

You can specify the size of an item on the checkout page.
