Application

Run on coiled tubing, TLV spear retrieves fish from a wellbore.

Design

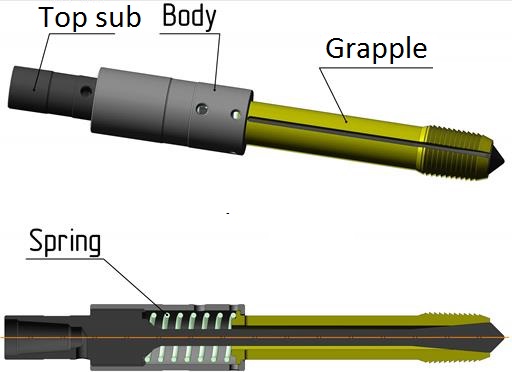

The spear consists of a top sub, a body, a grapple and a spring. Grapple OD has buttress fishing thread. The top sub has thread to connect to the fishing string.
The body is connected to the sub with pipe thread. The tool body has no watercourse. The tool communicates with the annulus through a port in the top sub.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru

Images and Dimensions
Technical data
To cart Code Fish ID,
in
Body OD,
in
Total length,
ft
Max load
capacity, lbf
Connecting thread Weight, lb
TLV-1-60 1.57 - 1.81 4.84 1.5 26 980 1'' AMMT 9.04
You can specify the size of an item on the checkout page.
